EASY TO INTEGRATE AND COMBINE.

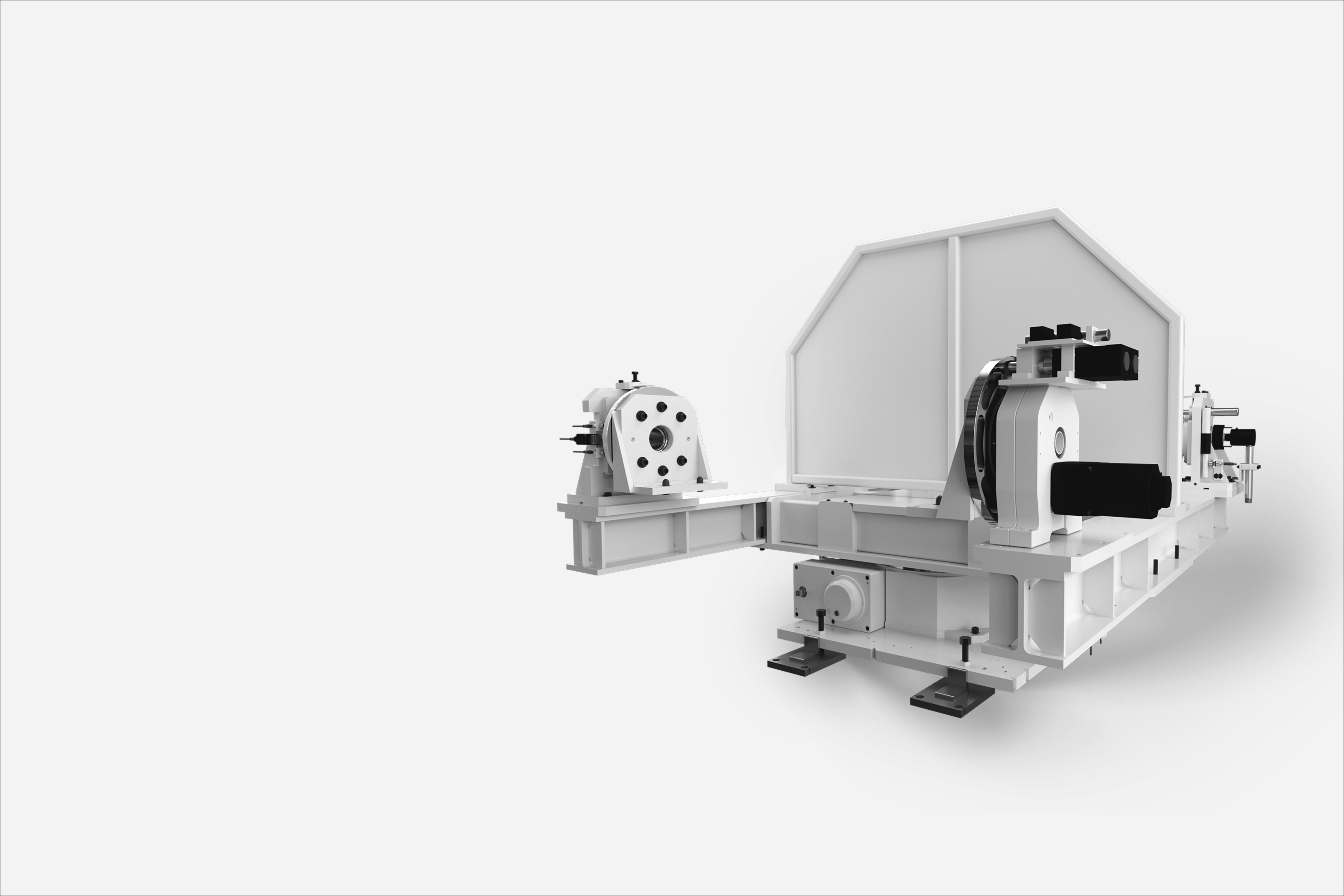

TRUNNION POSITIONER
As a complete solution consisting of multiple rotary indexing tables and a rugged frame, Trunnion Positioners augment robot applications such as welding and assembling not only in the automotive industry, but also anywhere heavy and large elements are processed.
features At a glance
- Concept
Modular - DOF
up to 3 - Integration
Platform independent
Features & Variants
TRUNNION POSITIONER
Trunnion Positioning Solutions are based on the versatile Rotary Indexing Table Portfolio from WEISS. When augmented by corresponding carrier systems, rotary feedthroughs, sensors and other application-specific adaptations, one of their benefits is that they expand the number of available axes of an industrial robot.
- Modular concept
- Standard version accuracy of up to +/-10 arcsec
- Accuracy can be adapted at any time
- Highly durable and maintenance-free
- Large center opening of up to 1216 millimeters for feed through of various media and set up of additional structures or consoles.

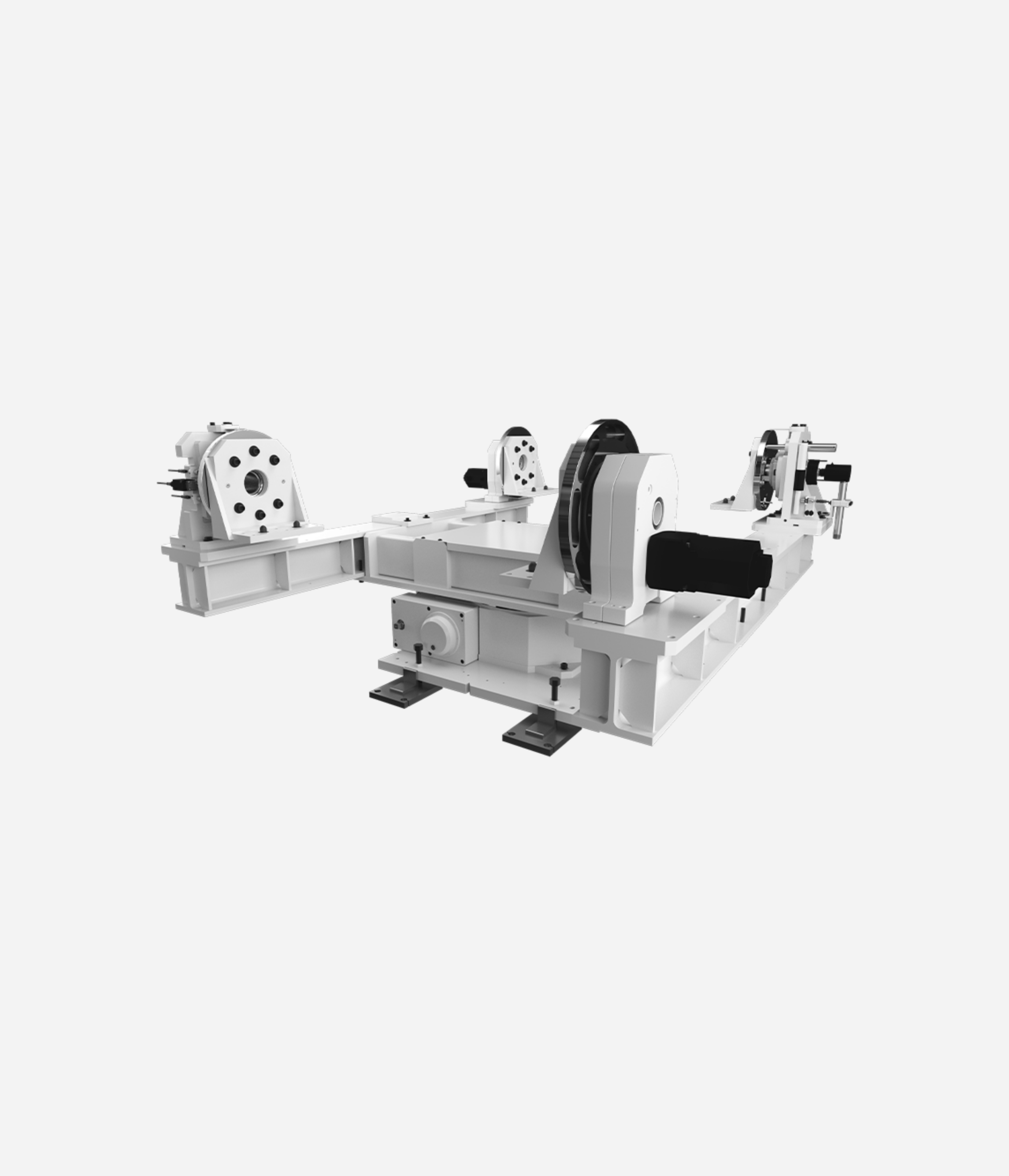

L Turner
- The Positioning Systems enable dual-axis motion profiles.

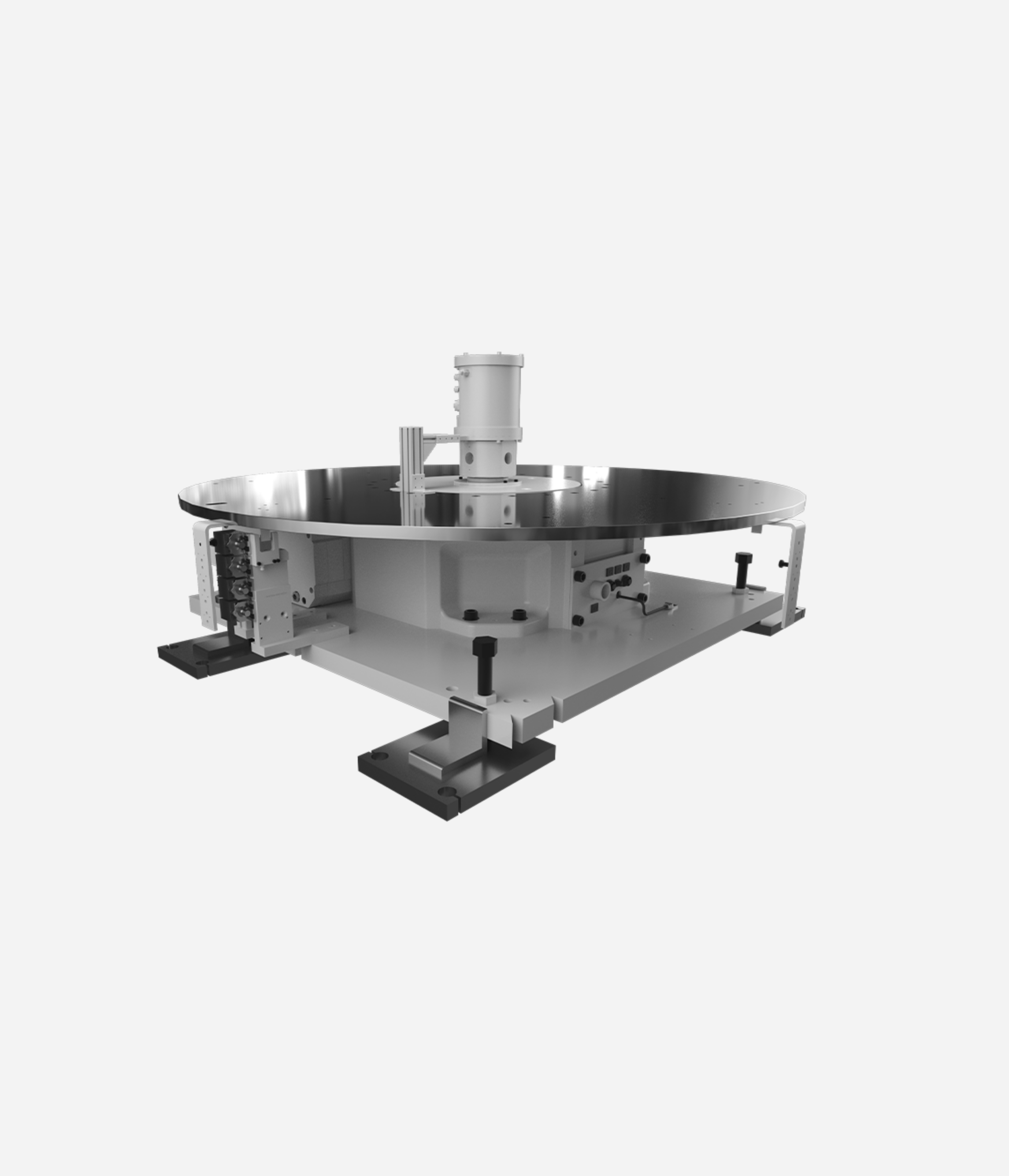

Customer specific Rotary Indexing Solutions
- Application-specific adaptation: individual parameters, additional structures, or frames.

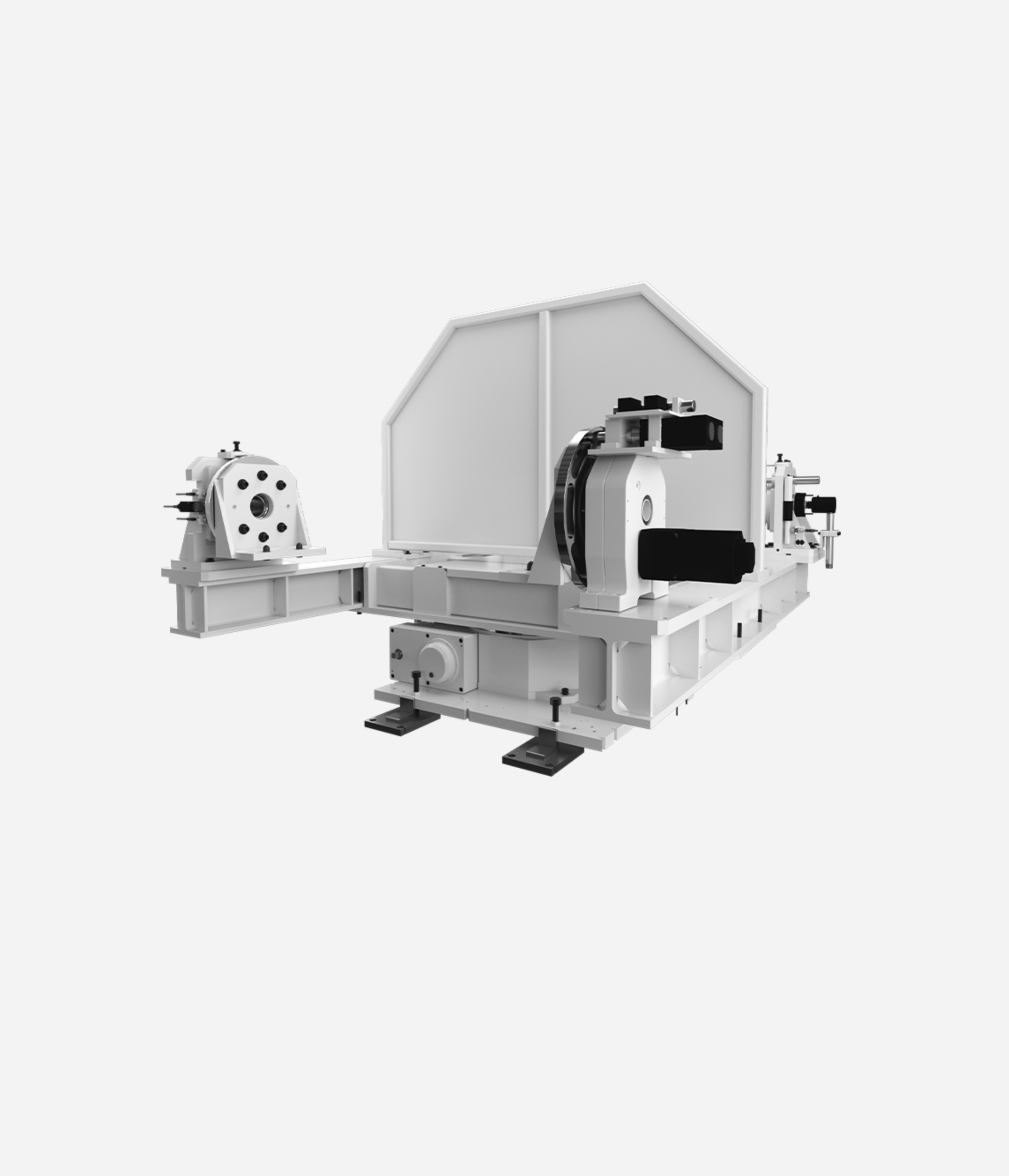

H Turner
- Decoupling of the loading of the workpiece carrier for a self-sufficient machining process.

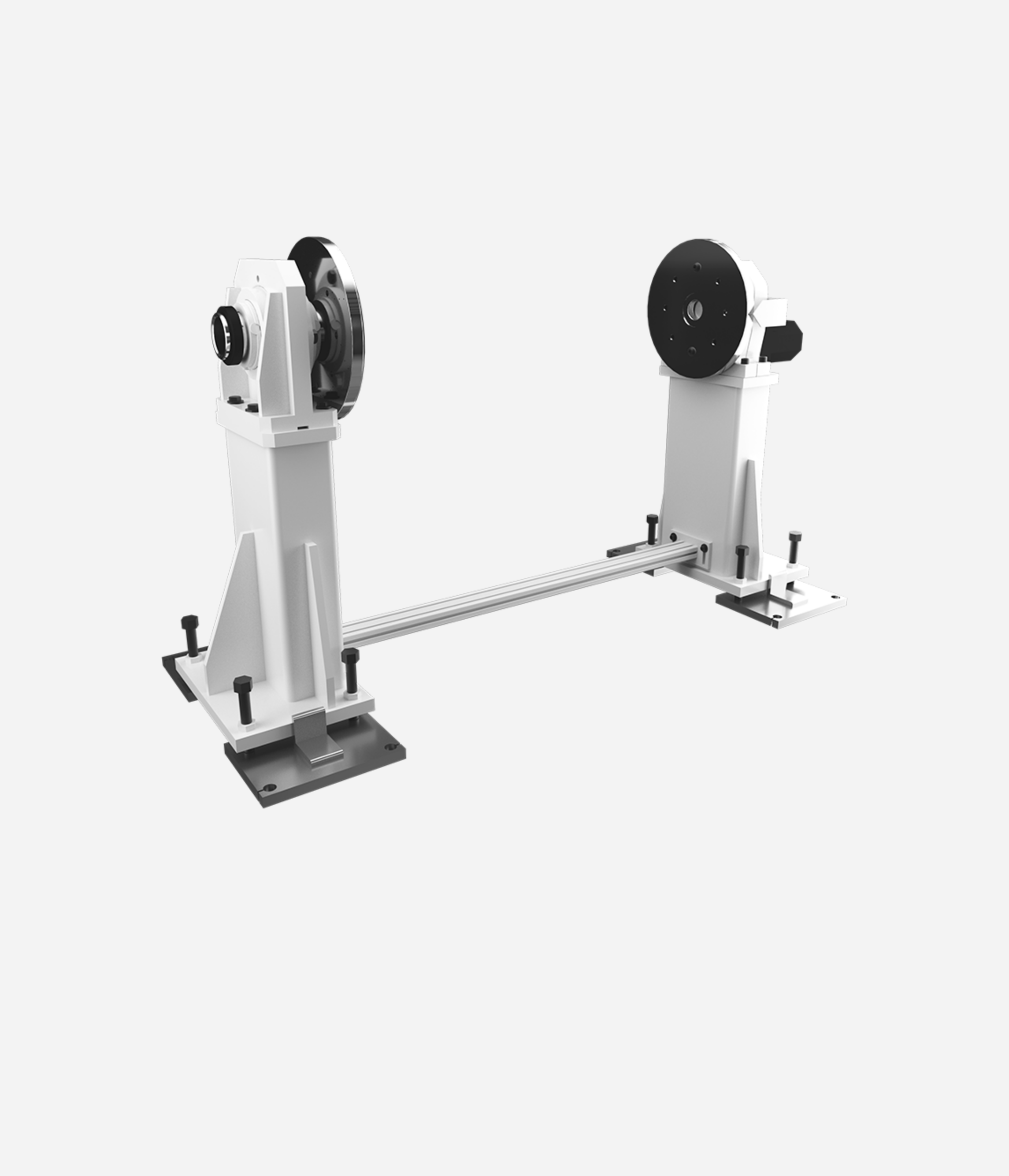

Headstock and Tailstock
- Single-axis units for rotary workpiece positioning.
SPECIFICATIONS
TO TORQUE ROTARY TABLE
Overview of the performance data and technical values of the TO Series:
TO 150C, TO 220C-1. TO 220C-2, TO 400C, TO 750C and TO 1300C
- Indexing precision ±25 to ±10 arcsec
- Peak torque up to 26600 Nm
- Max. static axial force up to 100000 N
- Diameter from 150 to 1300 mm
- Max. speed (400V) 80 to 250 1/min
- Axial runout 0.04 to 0.02 mm
- Radial runout 0.03 to 0.02 mm
- Controlled via W.A.S. WEISS Software
Have a project?
We'd love to
hear from you.
Have any questions about application areas or functions of the WEISS Trunnion Positioners? Get in touch with your technical adviser or contact us.
We look forward to your inquiry and will solve your challenge with you.
